Bafang BBS01B 36V 250W Mid Drive Electric Bike Motor Kit with LCD Display - Optional Battery Included - Ebike Conversion for Mountain & Road Bikes - Perfect for Commuting, Off-Road Adventures & Urban Riding

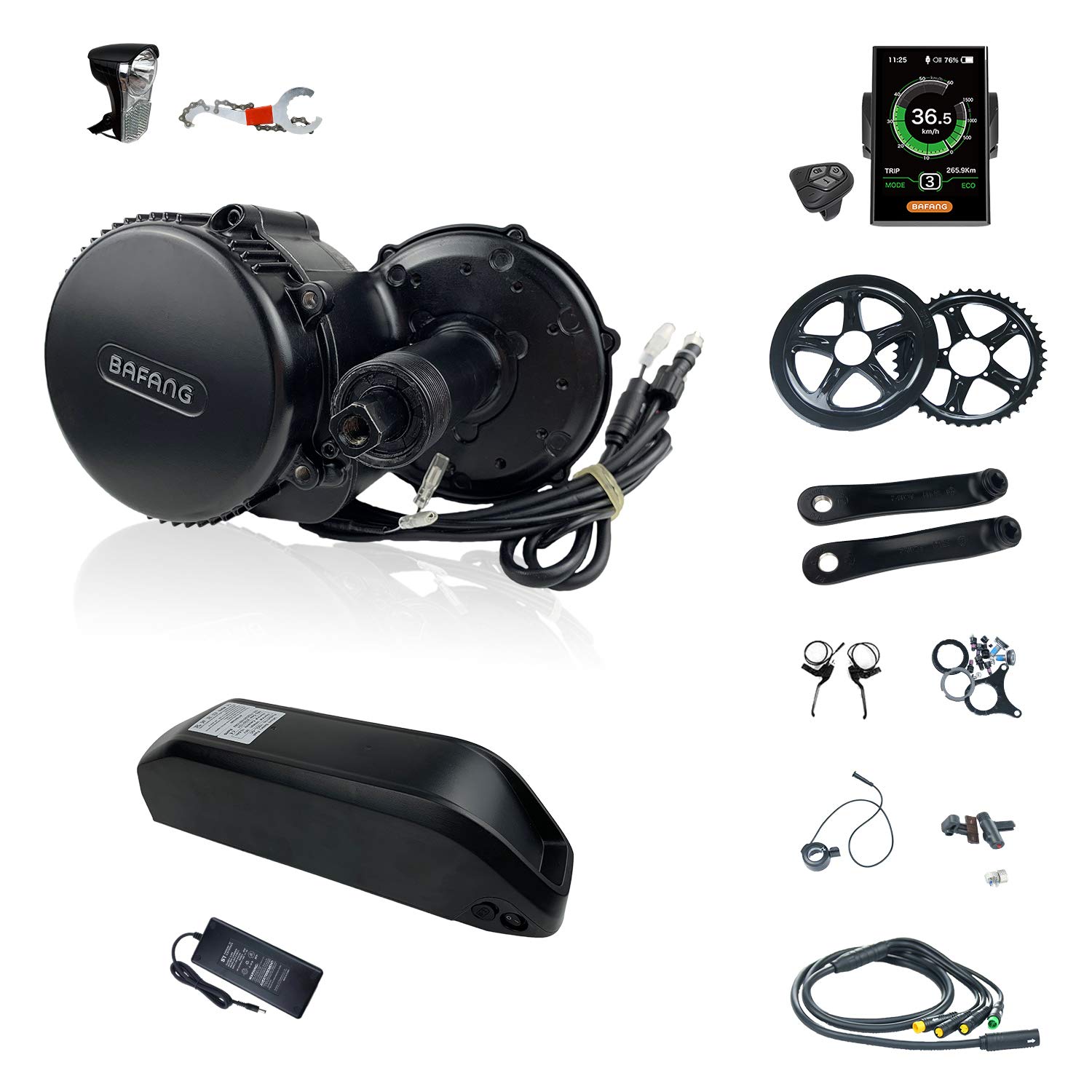

Specification: Model: MM G340.250 Power:250W Voltage:36V Controller Current: 15A No Load Speed(RPM) :83-87 Load Speed(RPM):78-83 Max Torque: 80 N.m Efficiency (%): ≥ 80% Pedal Sensor: Speed Shaft Standard: JIS Color: Black Weight (kg): 3.8 Noise Grade (dB): <55 Operating Temperature: -20-45℃ Display Working Temperature: -20-80℃ Centification:CE/EN 14764/ROHS Gearsensor Function: Yes Bracket bottom length:68mm Magnet Poles (2P): 16 IP: IP 65 Certifications: ROHS Salt Spray Test Standard(h): 96 Packing List: 1. MM G340.250 Motor 2.Brake levers( Or hydraulic sensors, email us please) 3.LCDdisplay---C965/C18 With Bluetooth function--- Optional 4.EB-BUS water-proof cable(1 to 4 cable) 5.Chain wheel with chainring plastic guard ( 44T/46T/48T/52T)---Optional 6.A pair of Cranks 7.Thumb Throttle 8.A set of Lock Nuts 9.Speed sensor and magnets 10.Mounting wrench as gifts 11.Installation manual( Scan code to get the installation video ) Lithium Battery 13Ah/14.5Ah/15.6Ah/19.2Ah Cell Model: China/Samsung/LG Nominal Capacity: 13 Ah(2600mAh-10S5P)/14.5 Ah(2900mAh-10S5P)/15.6 Ah(2600mAh-10S6P)/19.2Ah(3200mAh-10S6P) Nominal Voltage: 36 VDimension: 368 × 96 × 113 mm;368 × 90 × 96 mm Battery Packing List Battery × 1 Charger × 1 Gifts : Install Wrench (default) × 1 headlight (Optional) × 1 Warm tips: 1.Recommend to use a 36V battery to a 36V motor. Using a battery higher than 36V maybe shorten the life of the motor. 2. About how to measure bottom bracket. You will find the answer Measuring the bottom bracket shell width only, without any bearings or other pieces. For more help you can search on Google or Youtube. 3.Feel free to email us and reply within 24 hours. Just for a better service.

[Shipping & Warranty] --- delivered by FedEx. 1 Year warranty for ebike battery and bafang motor, free repair or replacement if there is any quality problem. And provide technical support & after-sales service in US. 24-hour online service.

[Conversion Accessories] --- All necessary mounting accessories are included. Please see the packing list image. Please choose the headlight or wrench（default） as a gift.Notice: Brake levers can be changed to hydraulic and mechanical brake sensor--- if you leave us a message about your requirements.

[Easy Installation] --- We will provide detailed installation video tutorials.You can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.

[Standard JIS] --- Fit a standard JIS 68 - 73 mm bottom bracket please see the installation image carefully. Suitable for mountain bike, road bike, commuter bike. (This motor maybe can't be installed on fat tire bike. It is NOT recommended to apply this motor to bikes with carbon fiber frame in case of damaging the frame.)

[Riding advantage]---Electric bikes& pedal bicycle, faster traffic & physical exercise can be achieved at the same time. A not bad choice for cycling enthusiasts and those who do not want too fast traffic to transport or travel. It is also a good way for commute to avoid crowded （Virus）.
